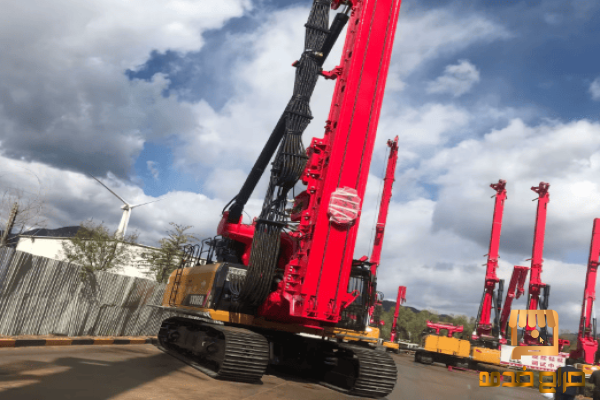

Designed for heavy-duty foundation projects, the SANY SR155-C10 Rotary Drilling Rig offers both efficiency and stability. Its rotary drive and hydraulic system ensure precise drilling with minimal energy loss. Intelligent controls simplify operation while reducing fuel costs. Strong construction and reliable components guarantee long service life and consistent results.

Features-

Efficient and Flexible: They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.

Special Chassis: Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.

Economical and Energy-saving: Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.

High Reliability: The mast adopts a box structure with solid resistance to torsion and fatigue; The sixth-generation Kelly bar adopts upgraded material and strengthened block ring; The overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.

Intelligent Upgrade: 10-inch HD touch screen, fast response, and more convenient operation.

Parameters-

Base Engine: Mitsubishi D06FRC-TAA

Engine Power: 147/2100kW/rpm

Emission Regulation: China Stage Ⅲ

Rated Speed: 5~35rpm

Rated Output Torque: 155kN·m

Max. Pile Diameter: 1500mm

Max. Pile Depth: 55/44m

Crowd Force: 155kN

Stroke: 4200mm

Line Pull: 160kN

Overall Height: 18600mm

Operating Weight: 48T

Transport Width: 3100mm

Transport Height: 3265mm

Lifting Capacity: 160kN

Max. Line Speed: 80m/min

Rope Diameter: 26mm
