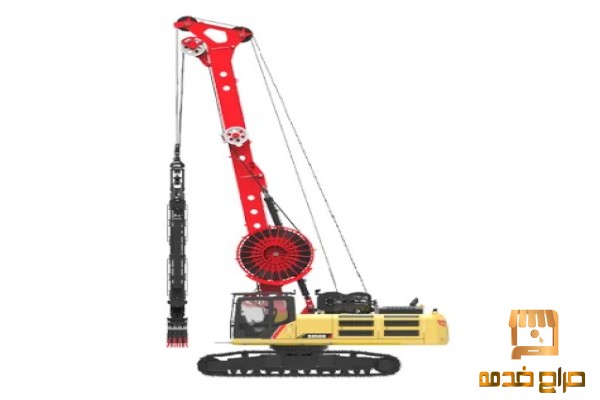

Engineered for power and precision, the SANY SH500 Hydraulic Grab delivers unmatched handling capability. Its robust hydraulic system enables efficient lifting, excavation, and loading. The reinforced frame ensures maximum durability for heavy-duty tasks. Perfect for construction sites, ports, and quarries, it delivers high operational stability. Designed for consistent performance, it boosts productivity while minimizing maintenance needs.

Features-

Powerful: The working device has large weight and maximum impact power, and can be deployed in strongly weathered rock strata within 10MPa.

Fast: The opening and closing time of the bucket is only 9 seconds, and the efficiency of soil catching, slag collecting and unloading is higher. The winch adopts synchronous confluence technology with the fastest speed.

Straight: The dynamic real-time detection technology of gyroscope is adopted to adjust the deviation of the gantry push plate in real time, and the perpendicularity of the groove can reach 1‰.

Stable: Professional large gauge chassis reduces rapid impact and shake and improves construction safety.

Deep: The construction depth is 80 meters, covering more than 90% of underground support projects, and the quality of grooves deeper than 60 meters is higher.

Economical: The main winch adopts single-layer large drum, and the wire rope has longer service life.

Convenient: It is equipped with electric centralized lubrication system and hydraulic quick-change joint to improve the convenience of disassembly, installation and maintenance.

Intelligent: Professional operating system with real-time display of drilling situation.

Parameters-

Base Engine: ISUZU 6UZ1

Engine Power: 257/2000kW/rpm

Emission Regulation: China Stage III

Groove Width: 600-1200mm

Groove Depth: 80m

Overall Height: 17435mm

Operating Weight: 100T

Transport Width: 3500mm

Transport Height: 3720mm

Max. Closing Force: 165T

Weight: 15-25T

Open & Close Bucket Time: 10/10S

Lifting Capacity: 2*270kN

Max. Line Speed: 80m/min

Wire Rope Diameter: 32mm
